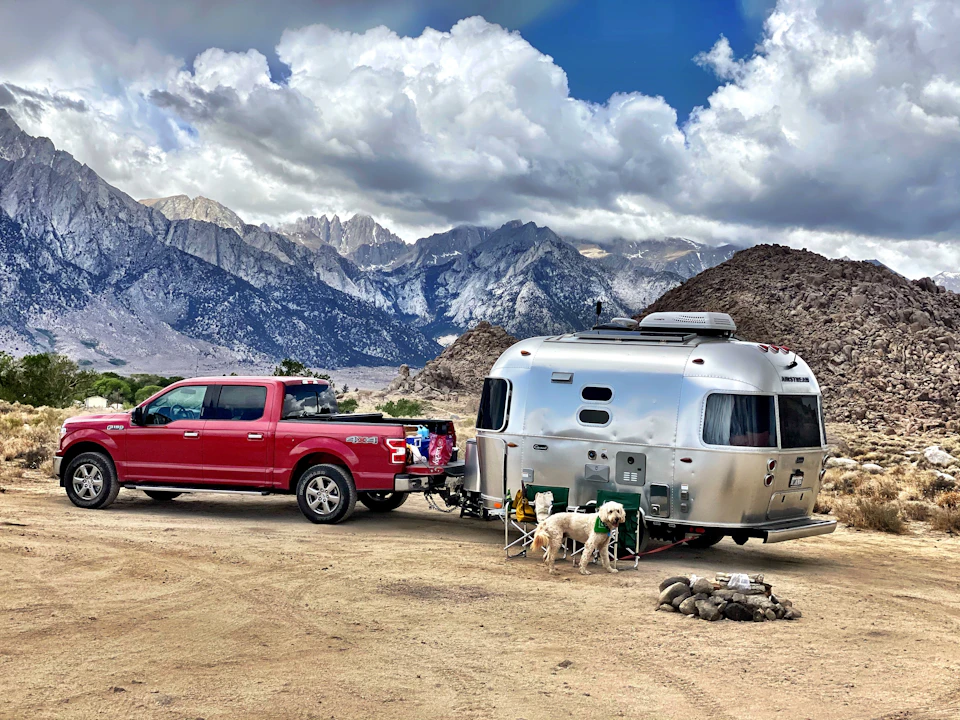

Half-ton towable travel trailers are trailers their makers market as light enough for a half-ton pickup, but the label is not a weight rating. Whether one suits your truck depends on the trailer's loaded weight and hitch weight against your own truck's door-jamb payload and towing ratings, so shop by those numbers, not the badge.
At a glance
- Keystone sells a Cougar Half-Ton line it describes as towable by most of today's half-ton trucks, and the same site tells owners they are solely responsible for choosing their tow vehicle.
- Across five 2027 floor plans checked for this guide, the most each trailer may weigh loaded runs from 7,600 pounds to 11,250 pounds.
- Ford's 2026 towing guide uses a tongue load of 10 percent of loaded trailer weight, which for all five floor plans is higher than the hitch weight the maker lists.
- Ford's guide counts trailer tongue load as part of the truck's cargo weight, so it comes out of the payload on the truck's door-jamb label.
Every trailer figure in this guide comes from the maker's own floor plan pages, read on 20 October 2026: three 2027 Keystone Cougar Half-Ton floor plans and two 2027 Jayco Jay Feather floor plans. The truck-side rules come from Ford's 2026 RV and Trailer Towing Guide. No trailer was weighed or towed for this article, so it shows published specifications and the arithmetic they support, not road behavior.
Keystone and Jayco label their weights differently. Keystone lists a shipping weight, a carrying capacity and a hitch weight. Jayco lists an unloaded vehicle weight, a dry hitch weight, a cargo carrying capacity and a gross vehicle weight rating (GVWR). For that reason the two brands sit in separate tables below and are not ranked against each other.
"Half-ton towable" is a description that a trailer maker chooses for its own trailers, and none of the makers quoted here ties it to a published truck rating. Heartland RV's own blog defines a half-ton towable as an RV that is light enough to be towed by a half-ton truck. Keystone puts the words in a model name, Cougar Half-Ton, and says the line is towable by most of today's half-ton trucks.
The same Keystone floor plan pages also say that owners of Keystone RVs are solely responsible for the selection and proper use of tow vehicles, and ask buyers to make sure the tow vehicle is compatible. In other words, the maker who uses the label still leaves the match to you. Other makers describe similar trailers as lightweight instead: Jayco calls the 2027 Jay Feather a lightweight travel trailer for easy towing.
The truck side of the match is just as specific. Ford's towing guide tells owners to see the label on the doorjamb for the carrying capacity of a specific vehicle, so check the label on the truck you will actually tow with.
Four numbers on a trailer's spec sheet tell you most of what a half-ton truck will face: the empty weight, the hitch weight, the cargo capacity and the maximum loaded weight. Check each one, in that order, for every floor plan on your list.
- Empty weight. Keystone calls it shipping weight and Jayco calls it unloaded vehicle weight. It is the starting point, not the weight you will tow.
- Hitch weight. The downward load the trailer puts on the hitch. Jayco labels its figure dry hitch weight and Keystone lists it simply as hitch. Ford's towing guide bases tongue load on the loaded trailer weight, so plan with a loaded figure too.
- Cargo capacity. Keystone lists carrying capacity and Jayco lists cargo carrying capacity: how much water, gear and food the trailer itself is rated to take.
- Maximum loaded weight. Jayco lists the GVWR. Keystone does not list a GVWR on these pages, so this guide adds the shipping weight and the carrying capacity to get the trailer's weight with its full rated carrying capacity in use.
Plan around the maximum loaded weight rather than the empty weight. Ford's guide tells owners to have the fully loaded vehicle and trailer weighed so as not to exceed critical weight limits.
The five floor plans below show how wide the half-ton and lightweight labels run: the heaviest may weigh 3,650 pounds more than the lightest when both are fully loaded. All figures are copied from each maker's 2027 floor plan page.
| 2027 floor plan (length) | Shipping weight | Listed hitch weight | Shipping weight plus carrying capacity |
|---|
| 21LBK (25 ft 11 in) | 6,090 lb | 760 lb | 8,000 lb |
| 28BHS (32 ft 11 in) | 7,555 lb | 965 lb | 9,750 lb |
| 29RLP (33 ft 9 in) | 8,465 lb | 1,060 lb | 11,250 lb |
Keystone lists carrying capacities of 1,910, 2,195 and 2,785 pounds for these three floor plans. Keystone's floor plan list shows nine 2027 Cougar Half-Ton floor plans, with listed weights from 6,090 to 8,465 pounds.
| 2027 floor plan (overall length) | Unloaded vehicle weight | Dry hitch weight | GVWR |
|---|
| 25BH (29 ft 8 in) | 6,015 lb | 665 lb | 7,600 lb |
| 29BHB (34 ft 0 in) | 7,055 lb | 790 lb | 8,700 lb |
Jayco lists cargo carrying capacities of 1,585 pounds for the 25BH and 1,645 pounds for the 29BHB. Once you have a weight range in mind, you can browse travel trailers and other RVs for sale on Searchshop and compare floor plans dealers have in stock.
Hitch weight matters most for a half-ton truck because it lands on the truck and uses up payload. Ford's 2026 guide says that for conventional trailers over 2,000 pounds, tongue load is 10 percent of loaded trailer weight, and that trailer tongue load is part of the truck's cargo weight.
| 2027 floor plan | Maximum loaded weight | 10% of maximum loaded weight | Hitch weight the maker lists |
|---|
| Jay Feather 25BH | 7,600 lb | 760 lb | 665 lb |
| Cougar Half-Ton 21LBK | 8,000 lb | 800 lb | 760 lb |
| Jay Feather 29BHB | 8,700 lb | 870 lb | 790 lb |
| Cougar Half-Ton 28BHS | 9,750 lb | 975 lb | 965 lb |
| Cougar Half-Ton 29RLP | 11,250 lb | 1,125 lb | 1,060 lb |
For every floor plan in the table, 10 percent of the maximum loaded weight is higher than the hitch weight the maker lists, by 10 to 95 pounds. Plan with the higher figure, because that is the load Ford's method puts on the truck when the trailer is full. Neither number replaces a scale: the hitch weight of your loaded trailer depends on how you pack it, and Ford's guide explains how to measure it by placing only the trailer tongue on the scale.
Checking a half-ton towable against your truck takes five steps, using the trailer's spec sheet, your truck's door-jamb labels and the truck maker's towing guide for your exact configuration. The Jay Feather 29BHB is used as the example below.
- Trailer weight against tow rating. Take the trailer's maximum loaded weight, 8,700 pounds for the 29BHB, and compare it with the tow rating the truck maker gives for your truck's exact configuration, not the highest figure advertised for the model.
- Hitch weight against payload. Use the larger of the listed hitch weight and 10 percent of the maximum loaded weight. For the 29BHB that is 870 pounds before anything else goes in the truck.
- Everything else in the truck. Add the weight of every passenger, pet and item in the cab and bed, including hitch parts carried on the truck. The total, plus the hitch weight, must fit within the payload on your truck's door-jamb label.
- Combined weight. Ford's guide defines the gross combination weight rating (GCWR) as the maximum allowable weight of the towing vehicle and the loaded trailer. The loaded truck plus 8,700 pounds must stay within it.
- Weigh the loaded rig. Before a long trip, weigh the loaded truck and trailer, and the tongue on its own, and compare each result with its rating.
If the 29BHB fails any step for your truck, a floor plan with a lower maximum loaded weight, such as the 7,600-pound 25BH, is the next one to check. For more on the truck side, see Best Trucks for Towing a Travel Trailer.
A used half-ton towable needs the same weight check as a new one, using the labels on the trailer itself rather than a brochure. Keystone's floor plan pages say its website data typically reflects the most recent production run and that specifications are subject to change, and they ask buyers to read the labels on each trailer for actual weights and cargo carrying capacity.
Specifications can change between production runs, and anything added since the trailer left the factory adds to its weight. Ask the seller for the trailer's weight label, look up the spec page for that exact model year where the maker keeps one, and weigh the trailer before you rely on any figure for towing.
The right half-ton towable is the one whose loaded weight and hitch weight fit inside every rating on your particular truck, with the trailer packed the way you camp. Before you visit a dealer, gather these numbers:
- Your truck's payload and GVWR from its door-jamb labels.
- Your truck's tow rating and GCWR for its exact configuration, from the truck maker's current towing guide.
- The total weight of the people and gear you carry in the truck.
- For each trailer you like, the maximum loaded weight and the listed hitch weight.
For layout and brand questions, read the Travel Trailer Buying Guide, Fifth Wheel vs Travel Trailer and Truck Camper vs Travel Trailer, which compares how much weight each puts on the truck. If even the lighter floor plans do not fit, Pop-Up Camper vs Travel Trailer covers a lighter option.
When your numbers are ready, search travel trailers for sale on Searchshop and ask each dealer for the weight label of the exact trailer on the lot.
Half-ton towable travel trailers cover a wide weight range, so check each floor plan. Keystone lists 2027 Cougar Half-Ton floor plan weights from 6,090 to 8,465 pounds. With its full 2,785-pound carrying capacity in use, the Cougar Half-Ton 29RLP reaches 11,250 pounds, its shipping weight plus carrying capacity. Compare the loaded figure of the floor plan you want with your truck, not the line's lightest model.
The 10 percent rule takes the trailer's tongue load as a tenth of the loaded trailer's weight. Ford's 2026 RV and Trailer Towing Guide states that for conventional trailers over 2,000 pounds, tongue load is 10 percent of loaded trailer weight. For a Jay Feather 29BHB at its 8,700-pound GVWR, that is 870 pounds, against the 790-pound dry hitch weight Jayco lists. Weigh your own tongue load to be sure.
Some 30-foot travel trailers are marketed for half-ton trucks, but the deciding numbers are weights, not length. Keystone markets the 32 ft 11 in Cougar Half-Ton 28BHS as part of its half-ton line, with a maximum loaded weight of 9,750 pounds and a 965-pound listed hitch weight. Compare those figures with your own truck's payload, tow rating and GCWR before deciding.
Your truck's payload is on the labels in the driver's door jamb. Ford's towing guide tells owners to see the label on the doorjamb for the carrying capacity of a specific vehicle, and NHTSA says the Tire and Loading Information label on new vehicles is on the driver's side doorjamb, and may be on the rear edge of the driver's door when there is no B-pillar.
